Delaware · Land Surveyor seal requirements
Delaware Land Surveyor seal requirements: size, wording, and the rule that sets them
As of
Land surveyors in Delaware seal under 24 Del. Admin. Code 2700 § 16.0 (Professional Seals, Rubber Stamps and Signatures), administered by the Board of Professional Land Surveyors. The seal reads “PROFESSIONAL LAND SURVEYOR”. The No. 1 official pocket size recognized in the trade: an inner circle 1 inch in diameter and an outer circle 1½ inches.
The 1½-to-1¾-inch range widely quoted for Delaware engineers appears in no Delaware authority — Chapter 28 states no dimension and the Council publishes no seal specification. The section often cited for the seal, § 2823, is "Grounds for discipline; appeals".
Delaware Land Surveyor seal
- Legend
- “PROFESSIONAL LAND SURVEYOR”
- Diameter
- The No. 1 official pocket size recognized in the trade: an inner circle 1 inch in diameter and an outer circle 1½ inches.
- Expiration date
- The seal carries only "REGISTERED", "NO." and "DELAWARE" inside, with "PROFESSIONAL LAND SURVEYOR" and the name between the circles.(24 Del. Admin. Code 2700 § 16.4-16.5)
- Signature date
- A plat or survey must bear the date of survey, and the prescribed certification statement carries a date line beside the surveyor's name and license number.(24 Del. Admin. Code 2700 § 12.2.15 and § 12.2.15.1)
- City on seal
- The plat itself must show a contact address, but nothing beyond the prescribed wording goes on the seal.(24 Del. Admin. Code 2700 § 16.4)

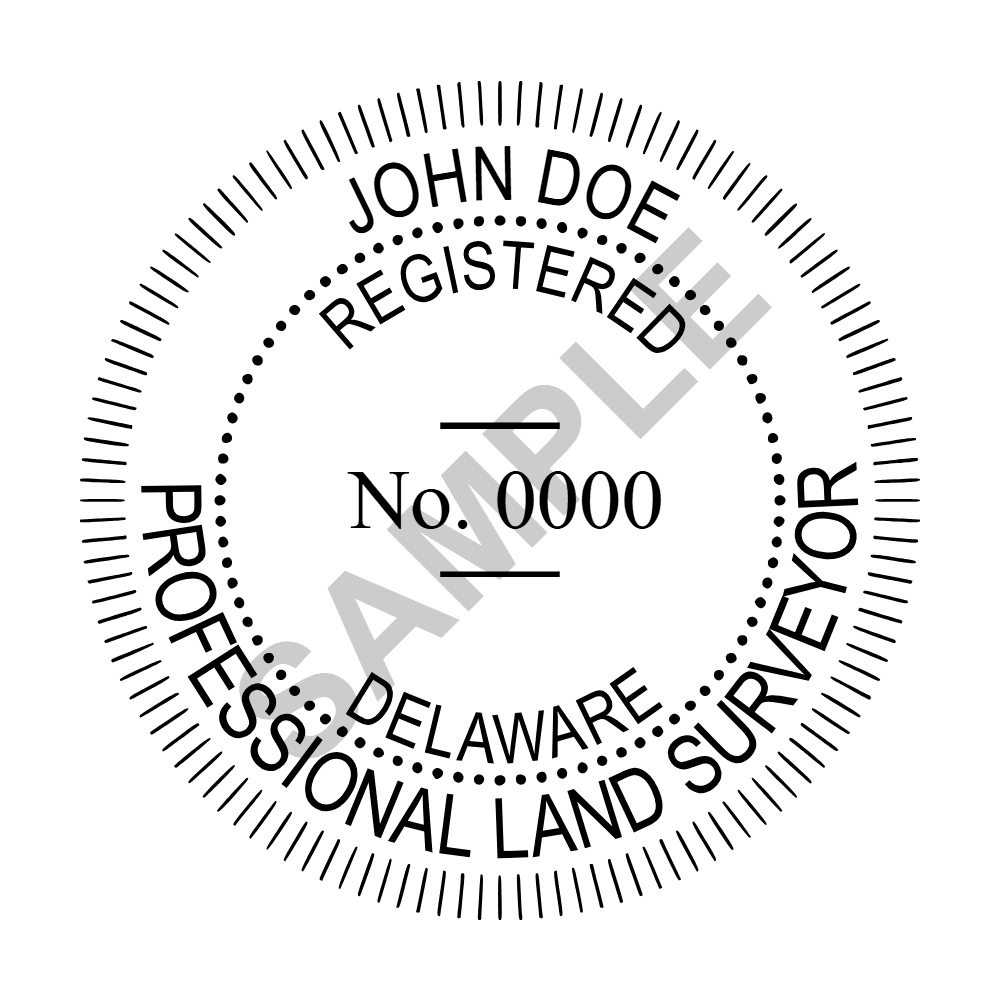

- The seal has two concentric circles. The inner circle contains only the words "REGISTERED," "NO.," and "DELAWARE."(24 Del. Admin. Code 2700 § 16.4)
- Between the two circles, "PROFESSIONAL LAND SURVEYOR" reads counterclockwise at the bottom and the licensee's name reads clockwise at the top.(24 Del. Admin. Code 2700 § 16.4)
- A raised seal shall be used wherever possible. Where it cannot be, a rubber seal may be used, but only with red ink so the lettering stands out.(24 Del. Admin. Code 2700 § 16.1-16.2)
- New licensees must provide the Board with a copy of both the raised and the rubber seal within 30 days of issuance of the license.(24 Del. Admin. Code 2700 § 16.6)
Delaware land surveyor seal questions
Can a Delaware land surveyor sign electronically?▾
A land surveyor's signature must be originally handwritten. The surveyor rule authorizes no electronic signature, in contrast to § 2829(b)(2) for engineers. (24 Del. Admin. Code 2700 § 16.3)
Does a Delaware land surveyor's seal say "State of Delaware"?▾
No. The prescribed design has two concentric circles, and the inner one contains only the words "REGISTERED," "NO.," and "DELAWARE." — the state's name sits inside the seal, not around its rim. The band between the circles carries "PROFESSIONAL LAND SURVEYOR" reading counterclockwise at the bottom and the licensee's name reading clockwise at the top, so the finished seal reads REGISTERED and PROFESSIONAL LAND SURVEYOR at once, and the reading direction of each is part of the rule. (24 Del. Admin. Code 2700 § 16.4)
Can a Delaware land surveyor email a plat with the seal left on it?▾
Only if it carries a conforming digital signature. 24 Del. Admin. Code 2700 § 12.12.1 requires documents transmitted electronically to a client or a governmental agency to have the computer-generated seal removed from the original file unless it is signed with a digital signature under § 12.12.2, and a prescribed sentence inserted in place of the signature and date. Scanned digital files of properly certified documents fall outside the subsection; CAD, vector and other easily edited files are squarely inside it. (24 Del. Admin. Code 2700 § 12.12.1)
What does Delaware require on a digitally signed land survey document?▾
More than the signature itself. 24 Del. Admin. Code 2700 § 12.12.2 requires the authentication procedure to be in a secure mode — with protective measures against alteration or overriding — and the document to carry a list of the hardware, software and parameters used to prepare it, on top of a signature that is unique to the licensee, capable of verification, under sole control and invalidated by any change to the document. § 12.12.3 adds that the electronic format must itself be approved by the Board. (24 Del. Admin. Code 2700 § 12.12.2, § 12.12.3)
Does a Delaware land surveyor's plat need more than the seal and signature?▾
Yes. 24 Del. Admin. Code 2700 § 12.2.15 requires a plat or survey to bear the firm name, the licensee's name and license number, the title "Professional Land Surveyor", a contact address and the date of survey, alongside the original signature and board-approved seal of the surveyor in responsible charge. § 12.2.15.1 then prescribes the form of a certification statement that must also appear, reciting that the information was prepared under the licensee's supervision, that it meets the Board's standards of practice, and that later changes to the property require a new review and certification. (24 Del. Admin. Code 2700 § 12.2.15, § 12.2.15.1)
